BULKLINER ULTRACUBE

THE COMBINATION BETWEEN ROBUSTNESS AND PAYLOAD

CHARACTERISTICS

Type : Tipper
Chassis : aluminium
Body : aluminium
Useful length : from 10,60 m up to 11,30 m
Body design: trapezoidal
Volumes : from 64 up to 68 m3
Weight : from 6800 kg
Utilization: industrial and household waste, scrap

Highly reinforced body: side wall rib doubling on last third of the body
Trapezoidal body for an optimized volume
Aluminium step-frame chassis for an optimized volume and a higher stability
Slopped floor for an easier outflow

null
<strong>Reinforcement angles</strong></p> <p><a ref='magnificPopup' href='https://www.benalu.com/wp-content/uploads/angles-de-renforcement.jpg'><img loading='lazy' class='alignnone size-medium wp-image-11001' src='https://www.benalu.com/wp-content/uploads//angles-de-renforcement-300x224.jpg' alt='' width='300' height='224' srcset='https://www.benalu.com/wp-content/uploads/angles-de-renforcement-300x224.jpg 300w, https://www.benalu.com/wp-content/uploads/angles-de-renforcement-1024x765.jpg 1024w, https://www.benalu.com/wp-content/uploads/angles-de-renforcement-1536x1147.jpg 1536w, https://www.benalu.com/wp-content/uploads/angles-de-renforcement-2048x1530.jpg 2048w, https://www.benalu.com/wp-content/uploads/angles-de-renforcement-600x448.jpg 600w, https://www.benalu.com/wp-content/uploads/angles-de-renforcement-768x574.jpg 768w, https://www.benalu.com/wp-content/uploads/angles-de-renforcement-30x22.jpg 30w, https://www.benalu.com/wp-content/uploads/angles-de-renforcement-60x45.jpg 60w' sizes='(max-width: 300px) 100vw, 300px' /></a>
<strong>Reinforced door frame</strong></p> <p> </p> <p><a ref='magnificPopup' href='https://www.benalu.com/wp-content/uploads/Cadre-de-porte-renforcé-2.jpg'><img loading='lazy' class='alignnone size-medium wp-image-11506' src='https://www.benalu.com/wp-content/uploads//Cadre-de-porte-renforcé-2-200x300.jpg' alt='' width='200' height='300' srcset='https://www.benalu.com/wp-content/uploads/Cadre-de-porte-renforcé-2-200x300.jpg 200w, https://www.benalu.com/wp-content/uploads/Cadre-de-porte-renforcé-2-683x1024.jpg 683w, https://www.benalu.com/wp-content/uploads/Cadre-de-porte-renforcé-2-1024x1536.jpg 1024w, https://www.benalu.com/wp-content/uploads/Cadre-de-porte-renforcé-2-1365x2048.jpg 1365w, https://www.benalu.com/wp-content/uploads/Cadre-de-porte-renforcé-2-600x900.jpg 600w, https://www.benalu.com/wp-content/uploads/Cadre-de-porte-renforcé-2-768x1152.jpg 768w, https://www.benalu.com/wp-content/uploads/Cadre-de-porte-renforcé-2-30x45.jpg 30w, https://www.benalu.com/wp-content/uploads/Cadre-de-porte-renforcé-2-60x90.jpg 60w, https://www.benalu.com/wp-content/uploads/Cadre-de-porte-renforcé-2-scaled.jpg 1707w' sizes='(max-width: 200px) 100vw, 200px' /></a>
<strong>Complete belting of the body</strong></p> <p><a ref='magnificPopup' href='https://www.benalu.com/wp-content/uploads/Ceinturage-complet-de-la-caisse.jpg'><img loading='lazy' class='alignnone size-medium wp-image-11016' src='https://www.benalu.com/wp-content/uploads//Ceinturage-complet-de-la-caisse-300x201.jpg' alt='' width='300' height='201' srcset='https://www.benalu.com/wp-content/uploads/Ceinturage-complet-de-la-caisse-300x201.jpg 300w, https://www.benalu.com/wp-content/uploads/Ceinturage-complet-de-la-caisse-1024x686.jpg 1024w, https://www.benalu.com/wp-content/uploads/Ceinturage-complet-de-la-caisse-1536x1030.jpg 1536w, https://www.benalu.com/wp-content/uploads/Ceinturage-complet-de-la-caisse-2048x1373.jpg 2048w, https://www.benalu.com/wp-content/uploads/Ceinturage-complet-de-la-caisse-600x402.jpg 600w, https://www.benalu.com/wp-content/uploads/Ceinturage-complet-de-la-caisse-768x515.jpg 768w, https://www.benalu.com/wp-content/uploads/Ceinturage-complet-de-la-caisse-30x20.jpg 30w, https://www.benalu.com/wp-content/uploads/Ceinturage-complet-de-la-caisse-60x40.jpg 60w' sizes='(max-width: 300px) 100vw, 300px' /></a>

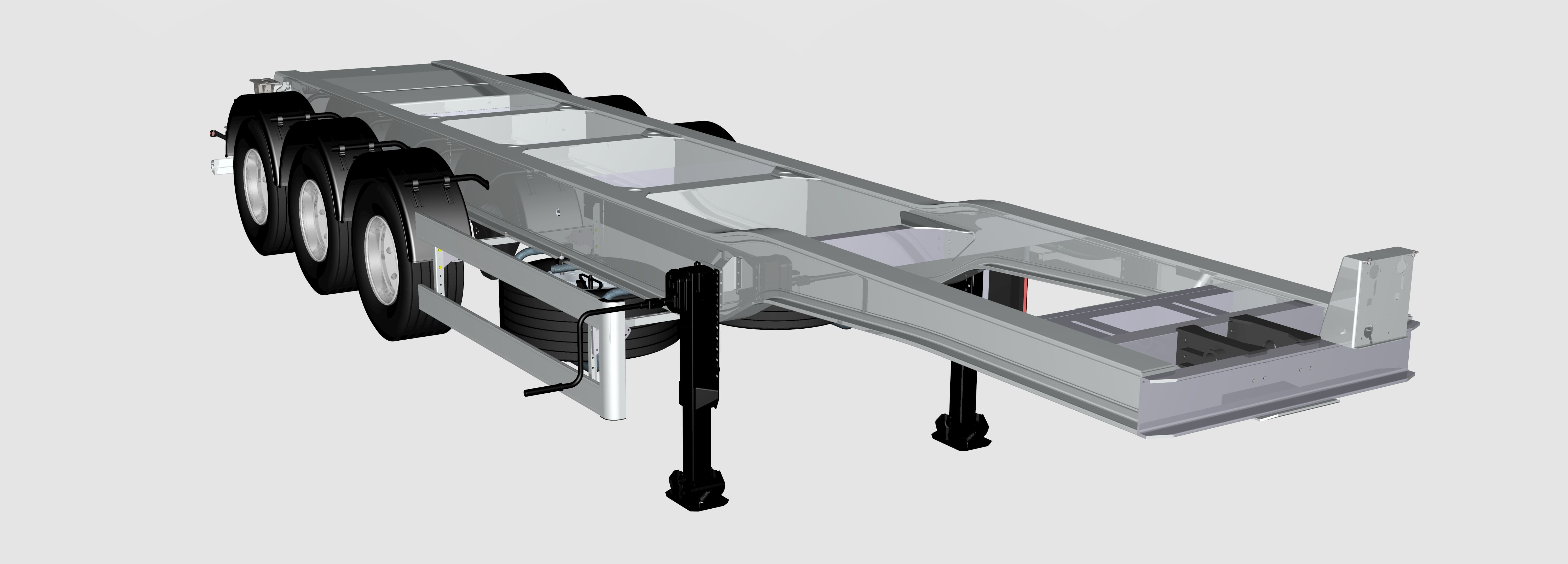

<strong>Step frame chassis</strong></p> <p><a ref='magnificPopup' href='https://www.benalu.com/wp-content/uploads/châssis-décroché-3.jpg'><img loading='lazy' class='alignnone size-medium wp-image-11107' src='https://www.benalu.com/wp-content/uploads//châssis-décroché-3-300x108.jpg' alt='' width='300' height='108' srcset='https://www.benalu.com/wp-content/uploads/châssis-décroché-3-300x108.jpg 300w, https://www.benalu.com/wp-content/uploads/châssis-décroché-3-1024x368.jpg 1024w, https://www.benalu.com/wp-content/uploads/châssis-décroché-3-1536x553.jpg 1536w, https://www.benalu.com/wp-content/uploads/châssis-décroché-3-2048x737.jpg 2048w, https://www.benalu.com/wp-content/uploads/châssis-décroché-3-600x216.jpg 600w, https://www.benalu.com/wp-content/uploads/châssis-décroché-3-768x276.jpg 768w, https://www.benalu.com/wp-content/uploads/châssis-décroché-3-30x11.jpg 30w, https://www.benalu.com/wp-content/uploads/châssis-décroché-3-60x22.jpg 60w' sizes='(max-width: 300px) 100vw, 300px' /></a>
<strong>Premium set</strong></p> <p><a ref='magnificPopup' href='https://www.benalu.com/wp-content/uploads/Ensemble-premium.jpg'><img loading='lazy' class='alignnone size-medium wp-image-11031' src='https://www.benalu.com/wp-content/uploads//Ensemble-premium-300x225.jpg' alt='' width='300' height='225' srcset='https://www.benalu.com/wp-content/uploads/Ensemble-premium-300x225.jpg 300w, https://www.benalu.com/wp-content/uploads/Ensemble-premium-1024x768.jpg 1024w, https://www.benalu.com/wp-content/uploads/Ensemble-premium-1536x1152.jpg 1536w, https://www.benalu.com/wp-content/uploads/Ensemble-premium-2048x1536.jpg 2048w, https://www.benalu.com/wp-content/uploads/Ensemble-premium-600x450.jpg 600w, https://www.benalu.com/wp-content/uploads/Ensemble-premium-768x576.jpg 768w, https://www.benalu.com/wp-content/uploads/Ensemble-premium-30x23.jpg 30w, https://www.benalu.com/wp-content/uploads/Ensemble-premium-60x45.jpg 60w' sizes='(max-width: 300px) 100vw, 300px' /></a>

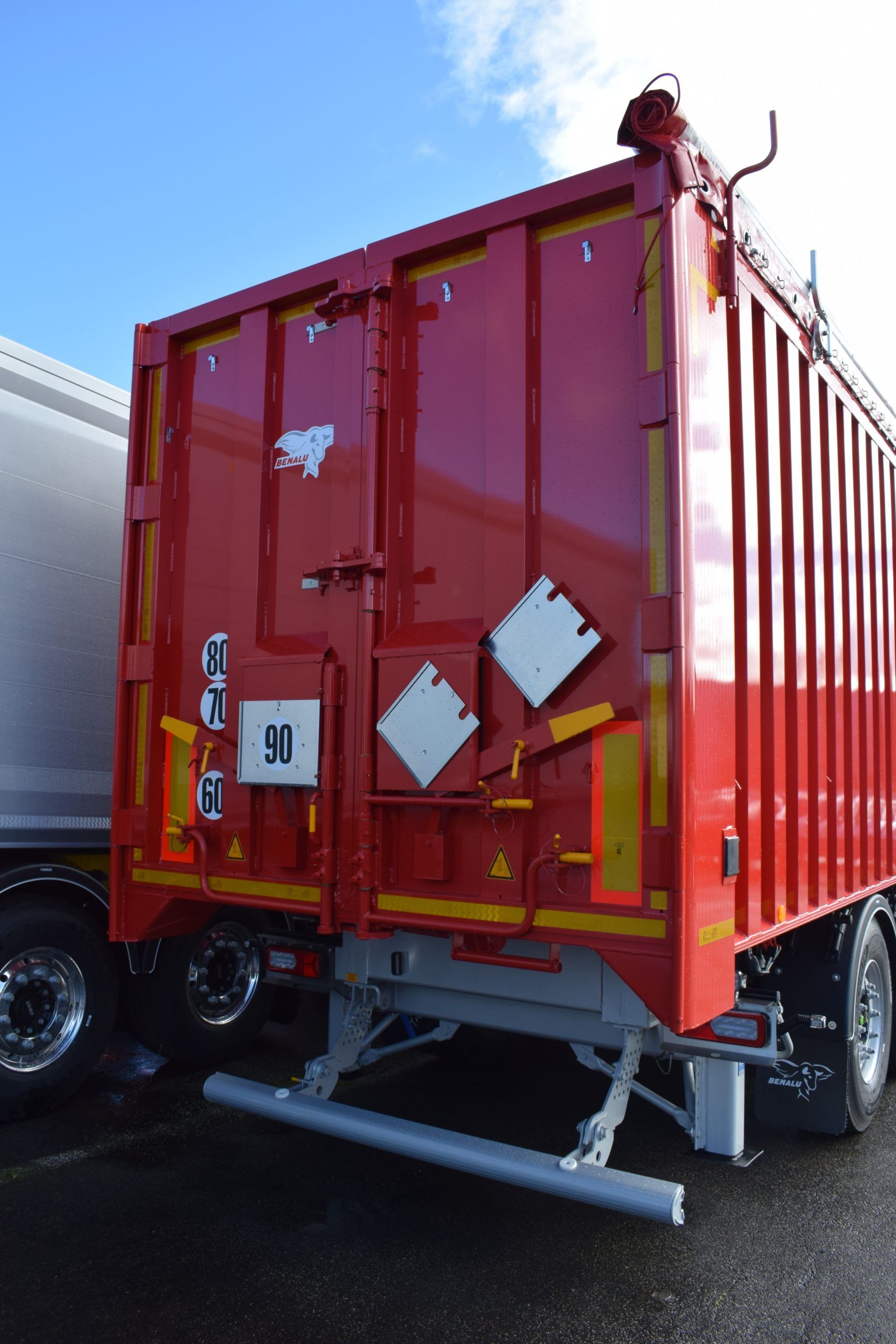

<strong>Soft closing door</strong></p> <p><a ref='magnificPopup' href='https://www.benalu.com/wp-content/uploads/Porte-à-fermeture-progréssive-3-scaled.jpg'><img loading='lazy' class='alignnone size-medium wp-image-11578' src='https://www.benalu.com/wp-content/uploads//Porte-à-fermeture-progréssive-3-200x300.jpg' alt='' width='200' height='300' srcset='https://www.benalu.com/wp-content/uploads/Porte-à-fermeture-progréssive-3-200x300.jpg 200w, https://www.benalu.com/wp-content/uploads/Porte-à-fermeture-progréssive-3-683x1024.jpg 683w, https://www.benalu.com/wp-content/uploads/Porte-à-fermeture-progréssive-3-1024x1536.jpg 1024w, https://www.benalu.com/wp-content/uploads/Porte-à-fermeture-progréssive-3-1365x2048.jpg 1365w, https://www.benalu.com/wp-content/uploads/Porte-à-fermeture-progréssive-3-600x900.jpg 600w, https://www.benalu.com/wp-content/uploads/Porte-à-fermeture-progréssive-3-768x1152.jpg 768w, https://www.benalu.com/wp-content/uploads/Porte-à-fermeture-progréssive-3-30x45.jpg 30w, https://www.benalu.com/wp-content/uploads/Porte-à-fermeture-progréssive-3-60x90.jpg 60w, https://www.benalu.com/wp-content/uploads/Porte-à-fermeture-progréssive-3-scaled.jpg 1707w' sizes='(max-width: 200px) 100vw, 200px' /></a>
<strong>Reinforced upper rail profile</strong></p> <p><a ref='magnificPopup' href='https://www.benalu.com/wp-content/uploads/Rive-supérieure-renforcée.jpg'><img loading='lazy' class='alignnone size-medium wp-image-11041' src='https://www.benalu.com/wp-content/uploads//Rive-supérieure-renforcée-300x200.jpg' alt='' width='300' height='200' srcset='https://www.benalu.com/wp-content/uploads/Rive-supérieure-renforcée-300x200.jpg 300w, https://www.benalu.com/wp-content/uploads/Rive-supérieure-renforcée-1024x683.jpg 1024w, https://www.benalu.com/wp-content/uploads/Rive-supérieure-renforcée-1536x1024.jpg 1536w, https://www.benalu.com/wp-content/uploads/Rive-supérieure-renforcée-2048x1365.jpg 2048w, https://www.benalu.com/wp-content/uploads/Rive-supérieure-renforcée-600x400.jpg 600w, https://www.benalu.com/wp-content/uploads/Rive-supérieure-renforcée-768x512.jpg 768w, https://www.benalu.com/wp-content/uploads/Rive-supérieure-renforcée-30x20.jpg 30w, https://www.benalu.com/wp-content/uploads/Rive-supérieure-renforcée-60x40.jpg 60w' sizes='(max-width: 300px) 100vw, 300px' /></a>

83 OPTIONS AND VARIANTS FOR THIS TYPE

Options especially designed to meet your needs

  • Towing ring
  • Tool box
  • Anti-rollover system
  • Full LED lights
  • Choice of wheel offsets
