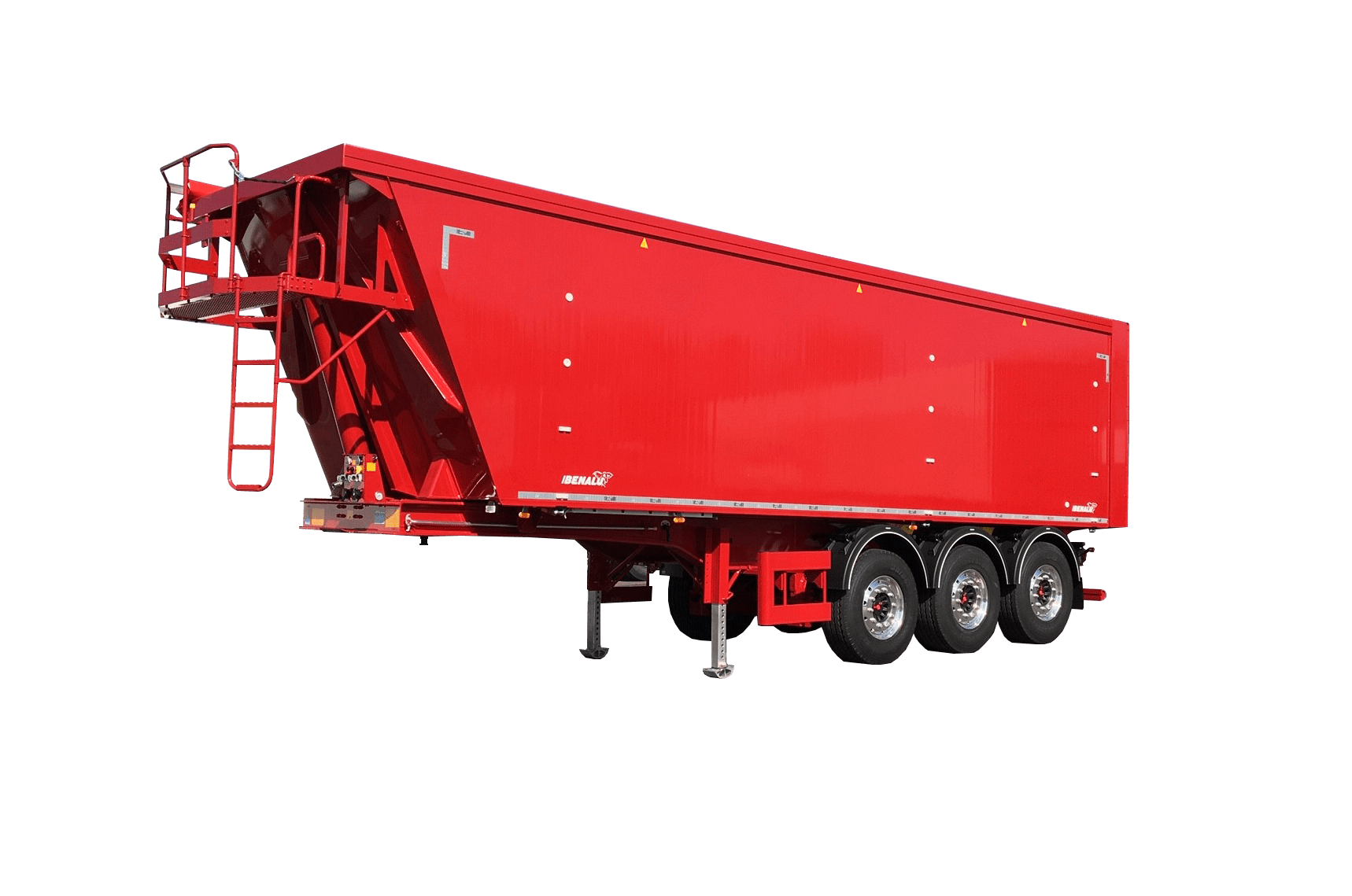

AGRILINER

POLYVALENCY, LIGHTNESS AND ROBUSTNESS

Tipper with chassis and body aluminium

Usefull lenght

from 8,80m up to 9,50m

Usefull height

from 1,70m up to 2,20m

Volumes

from 36 up to 50m3

Weight

from 5100kg

Goods

Agricultural products, fertilizers, sand, earth, …

Body profile

With stiffeners or smooth

Polyvalent tipper

for agricultural and public works

Aluminium chassis

robust and suitable for uneven grounds

Integral flow

Internal width of 2410 mm with any type of door (except hydraulic door)

49 OPTIONS AND VARIANTS FOR THIS TYPE

Lateral cover sheet system

Multifunctional cover sheet holders

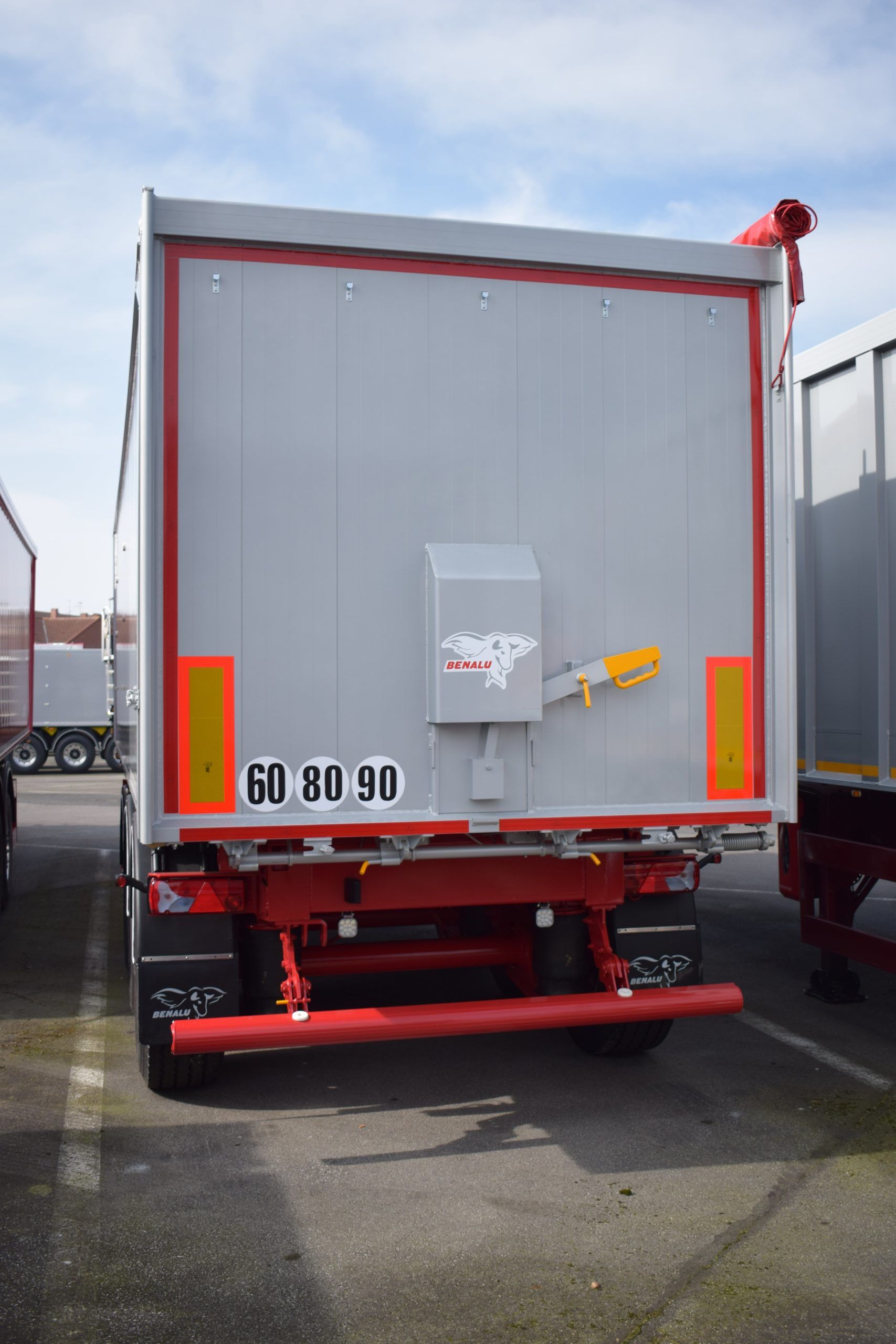

Rear doors to suit your needs (smooth)

Rear doors to suit your needs (with stiffeners)

Smooth side walls

Ribbed side walls

Cover sheet rod under the body

Straight aluminium chassis

Options especially designed to meet your needs !

Chassis options

  • Self-steering axle
  • Lift axles
  • Tool box
  • Anti-rollover system
  • Full LED lights
  • Choice of wheel offsets

Body Options

  • Wiremesh door for sugar beets
  • Grain hatches
  • Floor protection sheet for sticky products with front straight face (patent n° FR2976532)
  • Back door with remote unlocking device
  • Tool holders on the front wall

Finishing options

  • Unlimited colors and customizings
  • Side rolling cover sheet or EASYTARP™ electrical cover sheet system
