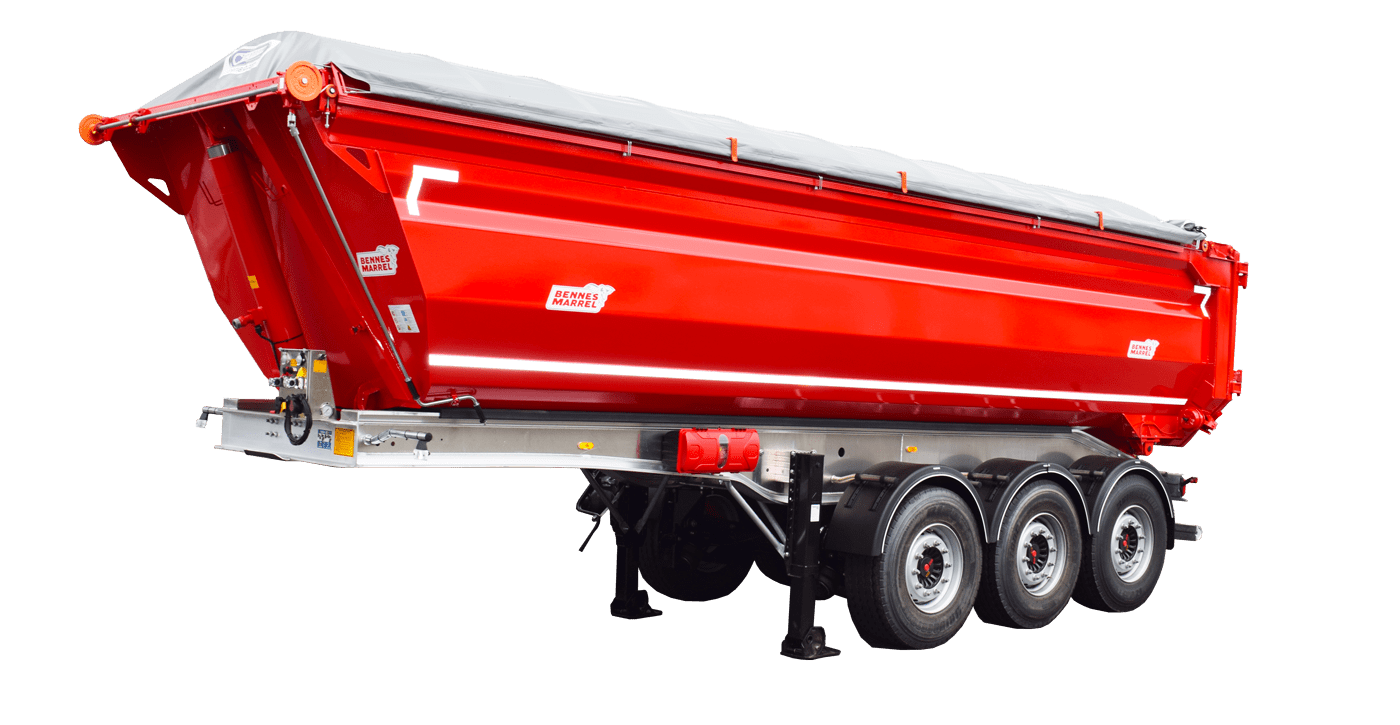

CARGOTRACKULTRA

THE LIGHTER CARGOTRACK

Tipper chassis aluminium and body steel

Useful length

from 7,5 m up to 7,70m

Useful height

from 1,55m up to 1,65m

Volumes

from 26 up to 29m3

Weight

from 5700 KG

Goods

Sand, asphalt, earth, mud, gravels, …

Faceted body HB450

curved side wall body with ribbed foldings

Payload and robustness

combination of aluminium and steel for payload optimization

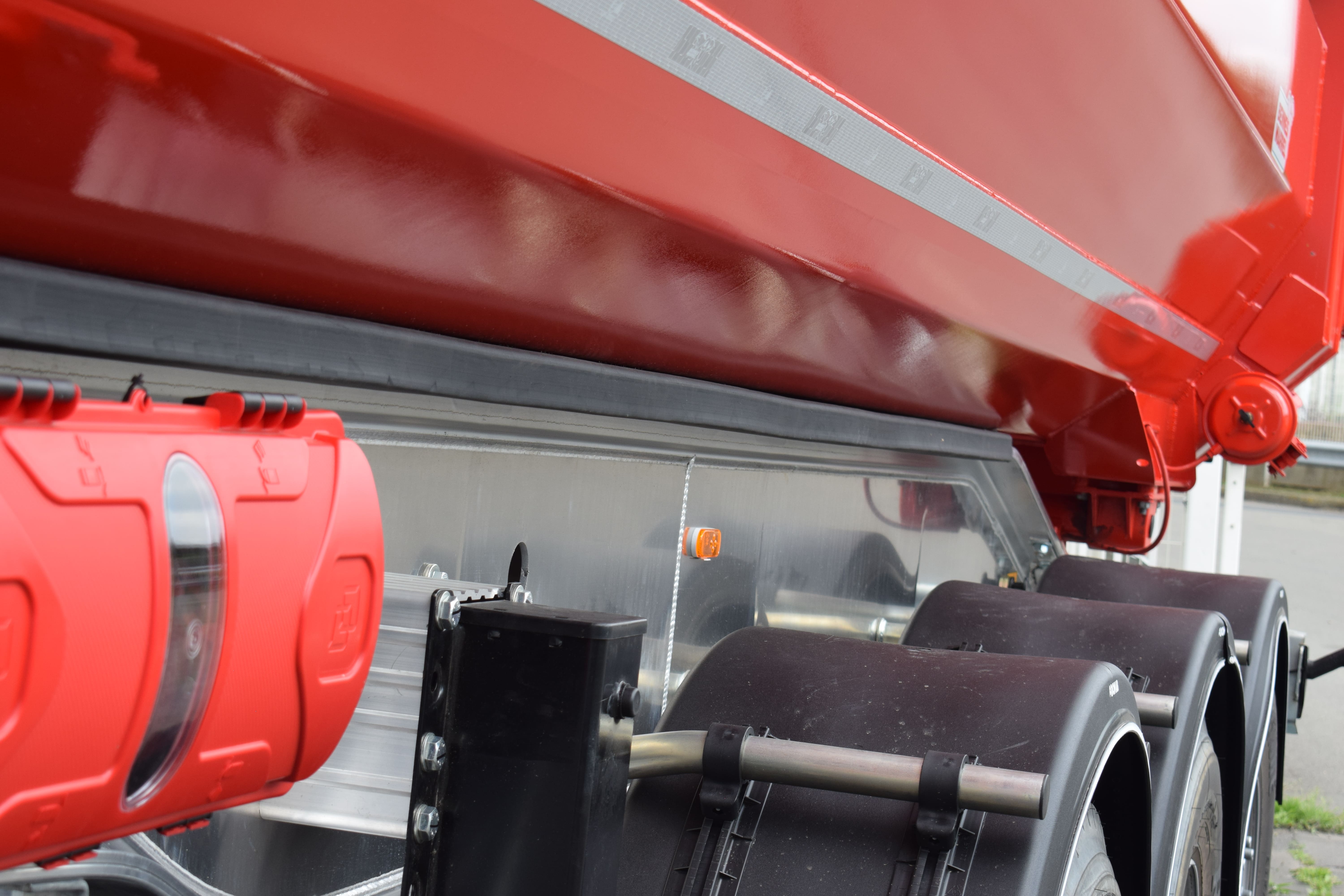

Aluminium straight chassis

robust and suitable for uneven grounds

Rear bumpers

Ultra compact, polyvalent which is especially suitable for road laying machine

52 OPTIONS AND VARIANTS FOR THIS TYPE

Full-length stiffening pleat

Compact vehicle

HB450 facet box

Longitudinal tarpaulin covering over the entire length

Reinforcing folds on the sides

Hydraulic door

Universal door

Flat aluminium chassis

Compact pneumatic bumper

Options especially designed to meet your needs !

Chassis options

  • Pneumatical or manual compact rear bumpers
  • Self-steering axle
  • Lift axles
  • Tool box
  • Full LED lights

Body Options

  • Side walls and floor insulation
  • Universal or hydraulic back door
  • Hydromechanical or pneumatic back door locking device
  • Tool holders on the front wall
  • Reinforcement for very tough uses; floor 8 mm, side walls 6 mm
  • Grain hatches on the back door

Finishing options

  • Unlimited colors and customizations
  • Longitudinal cover sheet on cable or lateral with manual or electrical control
